Brand Name : | Connect |
Model Number : | 321 309S |
Certification : | ISO TS |
Price : | negotiation |
Payment Terms : | by irrevocable L/C at sight |
Supply Ability : | 100 thousand pcs/m |
Delivery Time : | about 4 weeks |
321 309S Auto exhaust flexible pipe with interlock(outer wire
braided) for auto exhaust systems
STRUCTURE
Interlock flex pipe:interlock +bellows +outer braid +Caps
Main Spec
Caps | Aluminum steel or stainless steel 304 409L 201 202 etc |
Bellows/Interlock/Outer Braid: | Stainless steel 321 309S |
SPECIFICATION RANGE:
Inner Diameter: 38mm~76mm
Overall Length(Nipple length is not included):51mm~356mm
SIZE AVAILABLE
Inner Diameter(ID) | Length(L) | Inner Diameter(ID) | Length(L) | Inner Diameter(ID) | Length(L) |
mm | mm | mm | mm | 55 | 120 |
45 | 102 | 63.5 | 102 | 165 | |
152 | 152 | 180 | |||
178 | 203 | 200 | |||
203 | 230 | 250 | |||
230 | 254 | 65 | 150 | ||
254 | 280 | 200 | |||
280 | 305 | - | |||
305 | - | - | |||
50.8 | 102 | 76.2 | 102 | 70 | 100 |
152 | 152 | 120 | |||
203 | 203 | 150 | |||
230 | 254 | 200 | |||
254 | 305 | ||||
280 | 50 | 120 | |||
305 | 165 | ||||
57.2 | 102 | 42 | 120 | ||
152 | 165 | ||||
203 | 180 | ||||
230 | - | ||||
254 | 60 | 160 | |||
280 | 200 | ||||
305 | 240 |

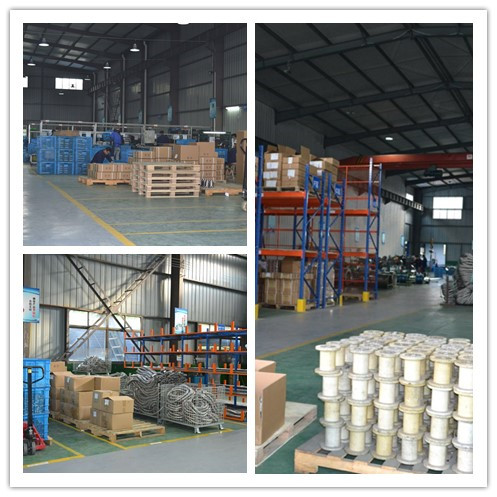

Warehouse
The manufacturer pays more attention to the site management, and
they strickly follow 6S management, and keep the warehouse always
in order and clean.
Application:
This kind of exhaust flexible pipe has inner braid, and is widely
used in Germany and some Chinese brand cars.
![]() |
