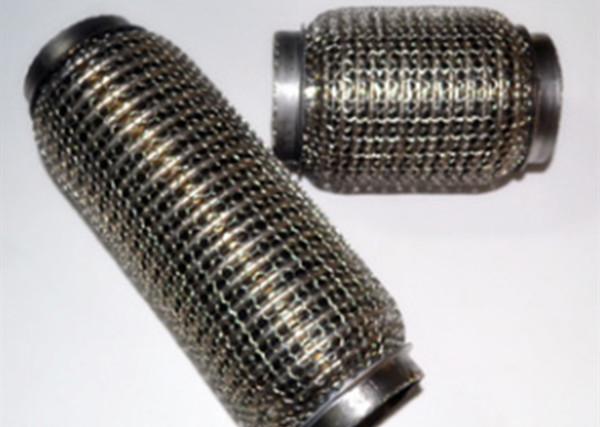

51X186mm Exhaust flexible pipe without inner liner for auto exhaust
systems
MATERIALS
Bellows:Stainless steel 430
Outer mesh: Stainless steel 304
Interlock:Stainless steel 304
Caps: Stainless steel 409L
The following grades could be made as per your request:
Bellows:Stainless steel 304 316L 309S 321 439 201 202
Outer mesh: Stainless steel 304 316L 309S 321 439 201 202
Interlock:Stainless steel 304 316L 309S 321 439 201 202
Caps: Aluminized Steel or stainless steel 201 202 430 etc
SIZE RANGE
Inner Diameter: 38mm~76mm(1.5"-3")
Overall length(Nipple length excluded):51mm~356mm(2"-14")
ROUTINE SIZE
| Inner Diameter(ID) | Length(L) | Inner Diameter(ID) | Length(L) |
| Inch | mm | Inch | mm | Inch | mm | Inch | mm |
| 1-3/4" | 45 | 4" | 102 | 2-1/4" | 57.2 | 4" | 102 |
| 6" | 152 | 6" | 152 |
| 7" | 178 | 8" | 203 |
| 8" | 203 | 9" | 230 |
| 9" | 230 | 10" | 254 |
| 10" | 254 | 11" | 280 |
| 11" | 280 | 12" | 305 |
| 12" | 305 | - | - |
| 2" | 50.8 | 4" | 102 | 2-1/2" | 63.5 | 4" | 102 |
| 6" | 152 | 6" | 152 |
| 8" | 203 | 8" | 203 |
| 9" | 230 | 9" | 230 |
| 10" | 254 | 10" | 254 |
| 11" | 280 | 11" | 280 |
| 12" | 305 | 12" | 305 |
| 3" | 76.2 | 4" | 102 | | | | |
| 6" | 152 | | | | |
| 8" | 203 | | | | |
| 10" | 254 | | | | |
| 12" | 305 | | | | |
Note: for other's not routine ID, such as 32 38 40 46 48 52mm, the
length could be customized upon request
Quality assurance:
1. Assurance of raw materials.
All the raw materials we purchased are from local major mill, such
as POSCO, BAOSTEEL AND TISCO etc. Compared with our competitors who
sourced raw materials from small mill, our products have better
appearance and more stable mechanical properties ,moreover the
lifetime would last 3-5 years more long than the usual ones.
2. Processing of braid
Our braid products are done strickly followed our internal flow of
processing, the products are in accordance with technical
requirements such as: no less wire, broken wire, selfless head
leakage, uniform appearance, close strict etc. for each process
there’s a strict Quality Test Procedure.
FAQ
Q. What is your terms of payment?
A: T/T 20% as deposit, and 80% before shipment. or full payment by
irrevocable L/C at sight
Q. What is your usual shipping terms?
A: FOB, CFR, CIF.
Q. How about your delivery time?
A: Generally, it will take 30 to 60 days after defined the order
and receipt of your advance payment. The exact delivery time
depends on the items and the quantity of your order.
Q. Can you produce according to the samples?
A: Yes, we can produce in accordance with samples or technical
drawings you provided. We can build the molds and fixtures.
Q. How is your sample policy?
A: We can supply the sample free if it's available in stock, but
the courier cost is at cusotmer charge.
