316 Series Stainless Steel Alloy Steel Wire Rod , Anti Acid Steel Wire Rod Coils

    Buy cheap 316 Series Stainless Steel Alloy Steel Wire Rod , Anti Acid Steel Wire Rod Coils from wholesalers

    Buy cheap 316 Series Stainless Steel Alloy Steel Wire Rod , Anti Acid Steel Wire Rod Coils from wholesalers
    • Buy cheap 316 Series Stainless Steel Alloy Steel Wire Rod , Anti Acid Steel Wire Rod Coils from wholesalers

    316 Series Stainless Steel Alloy Steel Wire Rod , Anti Acid Steel Wire Rod Coils

    Ask Lasest Price
    Model Number : 316 316L 316Ti
    Certification : ISO
    Price : negotiation
    Payment Terms : by irrevocable L/C at sight OR by T/T in advance
    Delivery Time : Within 6 weeks
    Brand Name : JUYE
    Supply Ability : 1000T
    • Product Details
    • Company Profile

    316 Series Stainless Steel Alloy Steel Wire Rod , Anti Acid Steel Wire Rod Coils

    316 316L 316Ti stainless steel wire rod diameter 5mm~38mm for hardware wire and cold heading


    Materials:

    GradeStandards
    GB/T 20878-2007JIS G4303:2005ASTM A959-09EN 10088-3:2005
    31606Cr17Ni12Mo2SUS316S316001.4401
    316L022Cr17Ni12Mo2S31603,316L1.4404
    316Ti06Cr17Ni12Mo2TiSUS316TiS31635,316Ti1.4571

    Main Specification:

    • Diameter: 5mm,5.5mm,6mm,5mm,7mm,7.5mm,8mm,8.5mm,9mm,9.5mm,10mm,11mm,11.5mm,12mm,13mm,15mm,16mm,17mm,18mm,19mm,20mm,21mm,22mm,23mm,24mm,25mm,26mm,28mm,30mm,32mm,34mm,38mm
    • Standard: JIS ASTM EN
    • Grade: 316 316L 316Ti
    • Tolerance: Option A,B or C, see here attached the tolerance table
    Diameter (mm)Tolerance(mm)Ovality(mm)
    Grade AGrade BGrade CGrade AGrade BGrade C
    ≥5.0~10±0.30±0.25±0.15≤0.50≤040≤0.24
    >10~15±0.40±0.30±0.20≤0.60≤0.48≤0.32
    >15~25±0.50±0.35±0.25≤0.70≤0.56≤0.40
    >25~38±0.60±0.40±0.30≤0.96≤0.64≤0.48

    Commerical Terms:

    • Usage: used as welded mesh, woven mesh, conveying belt and filter mesh stainless steel screw,bolt, screw, nail rivet etc.
    • Packaging Details: Standard export sea-worthy package.
    • Delivery Detail: within 20 working days after detailed techncial requirements and received your deposit.
    • Payment term: by irrevocable L/C at sight OR by T/T in advance

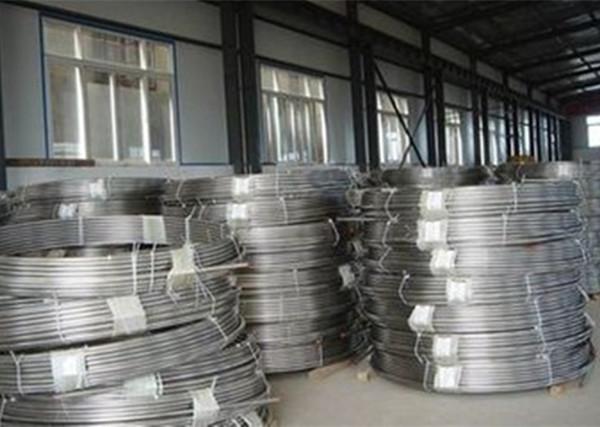

    Production Show
