Professional Stainless Steel Wire Rod 500kg - 2500kg Coil Weight ISO9001 Standard

    Buy cheap Professional Stainless Steel Wire Rod 500kg - 2500kg Coil Weight ISO9001 Standard from wholesalers

    Buy cheap Professional Stainless Steel Wire Rod 500kg - 2500kg Coil Weight ISO9001 Standard from wholesalers
    • Buy cheap Professional Stainless Steel Wire Rod 500kg - 2500kg Coil Weight ISO9001 Standard from wholesalers

    Professional Stainless Steel Wire Rod 500kg - 2500kg Coil Weight ISO9001 Standard

    Ask Lasest Price
    Brand Name : Tsingshan
    Model Number : 302HQ SUSXM7 S30430 1.4567
    Certification : ISO9001 ISO14001
    Price : negotiation
    Payment Terms : By T/T before shipment
    Delivery Time : about 4 weeks
    Supply Ability : 5000m a month
    • Product Details
    • Company Profile

    Professional Stainless Steel Wire Rod 500kg - 2500kg Coil Weight ISO9001 Standard

    302HQ SUSXM7 S30430 1.4567 stainless steel wire rods for cold heading


    Quick Detail:

    Description:Stainless steel rod

    Grade:302HQ SUSXM7 S30430 1.4567

    Standard: JIS ASTM EN

    Diameter: 5mm~38mm

    Coil weight: 500kg~2500kg

    Dimensional Tolerance: Grade A, Grade B or Grade C, as per customer option


    Chemical Composition:

    Grade:302HQ

    C:≤0.03%

    Si:≤1.0%

    Mn:≤2.0%

    P:≤0.045%

    S:≤0.030%

    Cr:17%-19.%

    Ni:8.5%~10.5%

    Cu:3%~4%

    Ni:≤0.10%


    Dimensional Tolerances for stainless steel wire rod


    Diameter (mm)Grade A
    Tolerance(mm)Ovality(mm)
    ≥5.0~10±0.30≤0.50
    >10~15±0.40≤0.60
    >15~25±0.50≤0.70
    >25~38±0.60≤0.96

    Diameter (mm)Grade B
    Tolerance(mm)Ovality(mm)
    ≥5.0~10±0.25≤040
    >10~15±0.30≤0.48
    >15~25±0.35≤0.56
    >25~38±0.40≤0.64

    Diameter (mm)Grade C
    Tolerance(mm)Ovality(mm)
    ≥5.0~10±0.15≤0.24
    >10~15±0.20≤0.32
    >15~25±0.25≤0.40
    >25~38±0.30≤0.48

    Main Characteristics:

    Element Cu is added based on grade 304, it’s used for cold heading, in possess with good cold heading performance, corrosion resistance and non-magnetic performance, it can be manufactured in a fast, efficient and economical way.


    Application

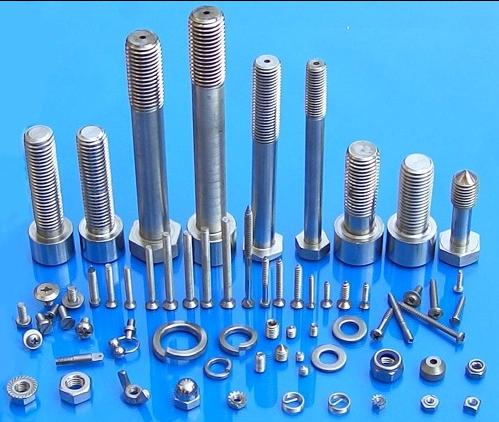

    it can be directly or after wire drawing,made into standard parts in different sizes such as :bolts, screws, nuts, nails, coiled nails, rivet shells, nails and so on.
