High Performance Stainless Steel Bar 25x25x3mm - 100x100x12mm Equal Angle Bar

    Buy cheap High Performance Stainless Steel Bar 25x25x3mm - 100x100x12mm Equal Angle Bar from wholesalers

    Buy cheap High Performance Stainless Steel Bar 25x25x3mm - 100x100x12mm Equal Angle Bar from wholesalers
    • Buy cheap High Performance Stainless Steel Bar 25x25x3mm - 100x100x12mm Equal Angle Bar from wholesalers

    High Performance Stainless Steel Bar 25x25x3mm - 100x100x12mm Equal Angle Bar

    Ask Lasest Price
    Brand Name : Hongcheng,Lixin,Yizhong
    Model Number : 201 304 316L
    Certification : ISO
    Price : negotiation
    Payment Terms : Either by L/C OR by T/T
    Supply Ability : 500T/M
    Delivery Time : about 6 weeks
    • Product Details
    • Company Profile

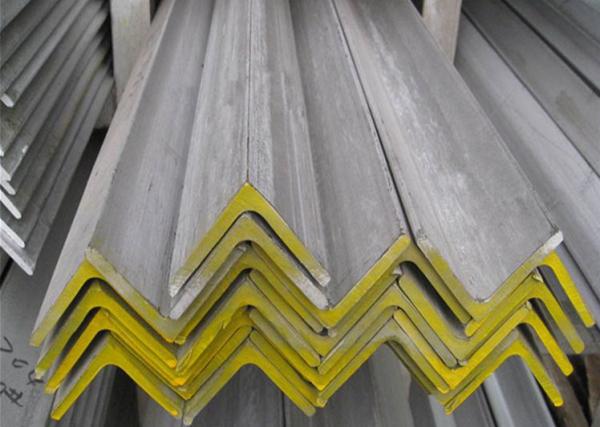

    High Performance Stainless Steel Bar 25x25x3mm - 100x100x12mm Equal Angle Bar

    25x25x3mm-100x100x12mm Stainless steel equal angle bar 304 201 316L


    General Description for Angel Bar

    Stainless steel angle may constitute vary structure parts when necessary, it can comprise of connections between structure parts too. It’s widely used in a variety of architectural and engineering structures, such as house beams, bridge beams, transmission tower, hoisting and conveying machinery, ships, industrial furnace, reactor, container rack and warehouse shelves.


    Stainless steel angle is built with carbon steel structure, is belong to simple section steel , it mainly used for metal components and the frame of the plant. Generally it’s necessary to have good weldability, deformation and certain mechanical strength.


    Size Available

    Angle bar(in mm)Thickness(in mm)
    34567891012
    25x25
    30x30
    40x40
    50x50
    60x60
    65x65
    70x70
    75x75
    80x80
    100x100
    Note: The color grey represents the range we eneable supply

    Theoretical weight as reference


    Size(mm)Weight(kg/m)Size(mm)Weight(kg/m)
    25x31.12470x66.406
    25x41.45970x77.398
    30x31.37370x88.373
    30x41.78675x66.905
    30x52.15975x77.976
    40x31.85275x89.030
    40x42.42275x99.962
    40x52.97680x78.407
    40x63.48580x89.546
    50x43.05980x910.668
    50x53.77080x1011.775
    50x64.465100x812.276
    60x54.520100x913.494
    60x65.420100x1015.120
    60x76.209100x1116.486
    60x87.034100x1217.898
    65x54.956
    65x65.899
    65x76.828
